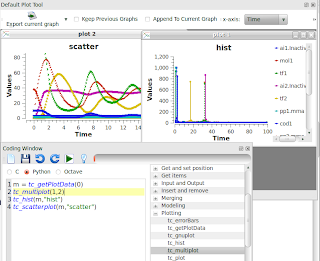

In addition to normal line plots, the plot tool features scatter plots, surface plots, and histograms. It can also to multiple plots. All of these features can be accessed from C++, C, Python, or Octave. Here is some code:

In C:

tc_matrix m = tc_plotData(i); //get data in ith plot window

tc_multiplot(2,1); //plot 2 graphs

tc_plot(m, "title"); //plot normal plot

tc_scatterplot(m, "title"); //scatterplot

tc_hist(m, "title"); //histogram

tc_surfacePlot(m, "title"); //3D plot - m must have 3

In Python:

m = tc_plotData(i); //get data in ith plot window

m2 = fromTC(m); //convert to python array

m = toTC(m2); //convert to tinkercell matrix

tc_multiplot(2,1); //plot 2 graphs

tc_plot(m, "title"); //plot normal plot

tc_scatterplot(m, "title"); //scatterplot

tc_hist(m, "title"); //histogram

tc_surfacePlot(m, "title"); //3D plot - m must have 3

In Octave:

m = tc_plotData(i); //get data in ith plot window

m2 = fromTC(m); //convert to octave matrix

//currently there is no way to convert to tinkercell matrix

//you will have to use tc_setMatrixValue to set each i,j-th

//value, i.e. write a double for-loop

tc_multiplot(2,1); //plot 2 graphs

tc_plot(m, "title"); //plot normal plot

tc_scatterplot(m, "title"); //scatterplot

tc_hist(m, "title"); //histogram

tc_surfacePlot(m, "title"); //3D plot - m must have 3

C++ (more code and more flexibility)

//get the plot tool

PlotTool * plot = static_cast(mainWindow->tool("plot"));

//get list of all plot windows inside the plot tool

QList<> plotWidgets = plot->plotWidgets();

//get the data from the i-th plot window

NumericalDataTable data = plotWidgets[0]->data();

//plot multiple graphs or plot on top of existing plot

plot->hold(true);

plot->overplot(true);

//plot data

plot->plot(data, "title");

//plot specific type of graph

int xaxis = 0; //index to use for x-axis

//specify plot type: Plot2D, SurfacePlot, HistogramPlot, ScatterPlot, BarPlot, Text

plot->data(data, "title", xaxis, PlotTool::BarPlot);
